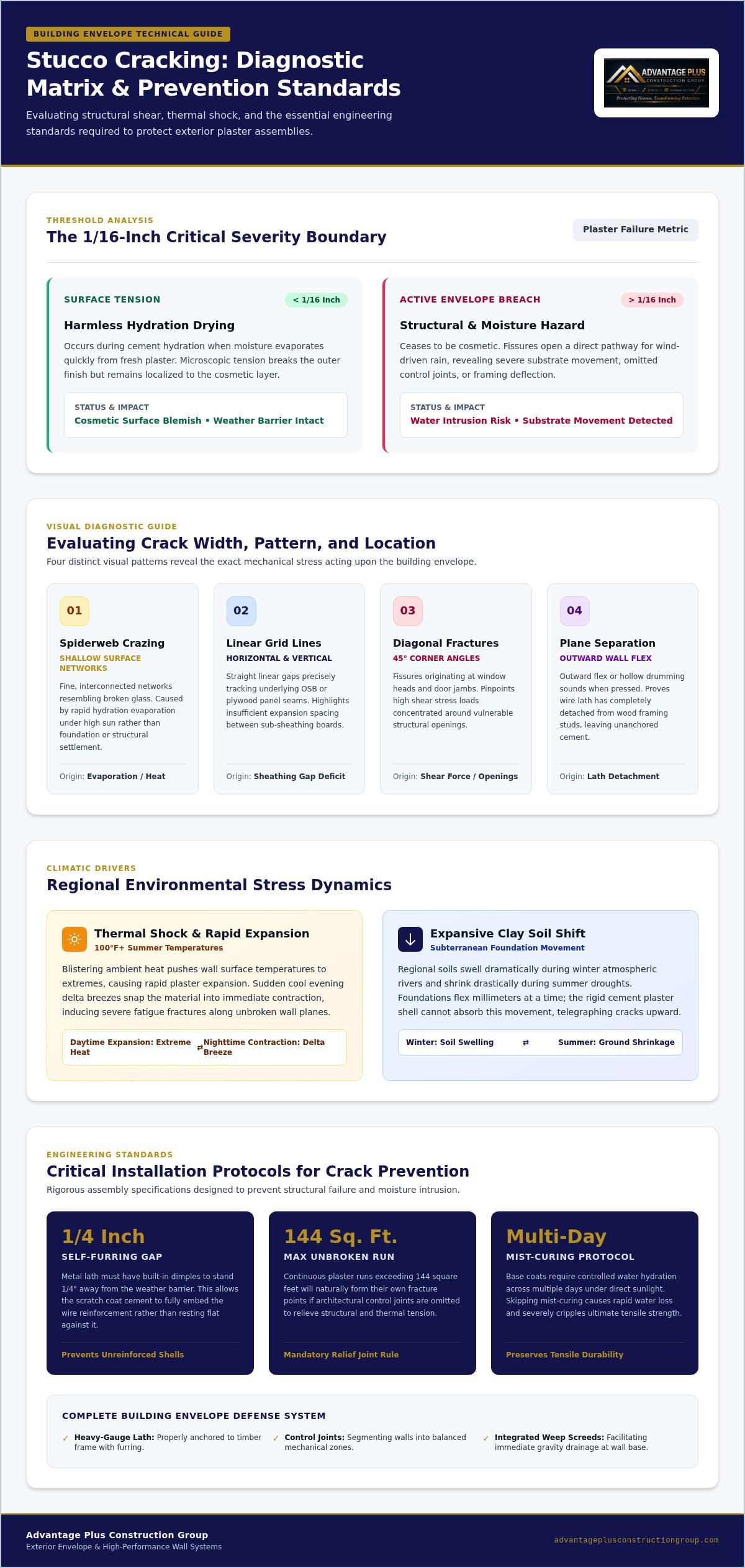

Stucco Cracking Causes and Prevention: The Homeowner Guide

A hairline fissure across your exterior plaster isn't merely an unsightly blemish; it is an active pressure valve for your building envelope. When you spot fracture lines creeping across an exterior wall, the natural response is to seal them quickly. Yet understanding true stucco cracking causes and prevention requires looking past the surface to evaluate structural movement, environmental stress, and moisture intrusion.

You shouldn't have to wonder whether a fine line is harmless curing or the first sign of hidden framing rot and water damage deteriorating your wall assembly. Watching quick cosmetic patches split open season after season only adds frustration and erodes confidence in your home's exterior protection.

In this guide, you will identify the primary structural and environmental triggers of plaster failure and learn proven envelope defense strategies to protect your home. We'll examine how to distinguish cosmetic shrinkage from severe shear fractures, explore how proper lathing and drainage planes prevent recurring cracks, and outline the permanent solutions needed to safeguard your property for decades to come.

Identifying Stucco Cracks: Hairline Shrinkage vs. Structural Failure

Exterior plaster requires deliberate observation. Because traditional stucco cures as a rigid portland cement shell over a flexible timber frame, fractures are often inevitable. Understanding stucco cracking causes and prevention begins with a clear distinction: separating harmless curing blemishes from deep structural movements that threaten the building envelope.

Most surface hairline fractures stem from hydration drying. When fresh cement loses moisture too rapidly, microscopic tension tears the outer finish. Wider fissures, conversely, expose underlying framing movement, severe substrate settlement, or omitted expansion joints. Once a crack expands beyond one-sixteenth of an inch, it ceases to be a visual nuisance. It becomes an open doorway for wind-driven rainwater.

The Visual Diagnostic: Width, Pattern, and Location

Homeowners can assess wall vulnerabilities by evaluating three primary visual indicators:

• Spiderweb crazing: Fine, shallow networks resembling broken glass. These indicate rapid hydration evaporation on hot days rather than foundation defects.
• Linear grid lines: Straight horizontal or vertical gaps tracking the edges of underlying plywood or OSB sheathing. These highlight insufficient gap spacing between panels.
• Diagonal re-entrant fractures: Distinct 45-degree cracks originating at window corners and door heads. These reveal concentrated shear loads where building forces gather around wall openings.

When Minor Plaster Cracks Signal Major Structural Shifts

Static fractures stay uniform across the calendar. Dynamic cracks expand in wet winters and contract during arid summers, signaling continuous framing flexure or shifting expansive clay soil. If a crack shifts dimensions between seasons, surface caulking cannot stabilize it.

Watch for plane separation. Press gently beside a wide fracture line. Any outward flex or hollow drumming confirms that the wire lath has pulled away from the wall studs. That detachment leaves the cement shell hanging without structural backing, requiring specialized exterior envelope intervention before moisture intrusion compromises the interior framing.

Root Causes of Stucco Cracking in Northern California

Northern California presents a punishing proving ground for exterior claddings. Regional microclimates create severe material stress that generic building practices simply fail to survive. Successfully mastering stucco cracking causes and prevention requires examining the environmental extremes and application oversights that disrupt plaster stability across the Central Valley and Sierra foothills.

Environmental Stress: Thermal Shock and Soil Movement

Sacramento summers routinely push ambient temperatures past 100 degrees Fahrenheit, driving wall surface temperatures even higher. This blistering heat triggers intense thermal shock, expanding the cement plaster rapidly before cool evening delta breezes snap it back into contraction. That constant movement induces fatigue cracks across unsegmented wall planes.

Subterranean conditions compound these surface pressures. Communities like Roseville, Rocklin, and Granite Bay sit atop expansive clay soils. These soils act like sponges, swelling during winter atmospheric rivers and shrinking drastically during summer droughts. This movement shifts foundations millimeters at a time. The rigid plaster matrix cannot absorb this subgrade flexure, telegraphing diagonal fissures straight through the facade.

Application Errors: Lath Installation, Mixing, and Hydration

Environmental forces exploit poor installation practices. Plaster integrity relies on rigorous assembly standards, yet rushed installations frequently skip critical structural safeguards:

• Missing self-furring dimples: If the metal lath sits flat against the weather barrier without a one-quarter-inch furring gap, the scratch coat cannot embed the wire. The plaster ends up resting against the lath rather than being reinforced by it.
• Uncontrolled hydration: Curing cement requires water. When contractors fail to mist-cure base coats across multiple days under direct sun, the water evaporates prematurely, crippling the plaster's ultimate tensile strength.
• Inadequate expansion joints: Unbroken stucco runs exceeding 144 square feet naturally develop their own relief points through fractures if control joints are omitted.

Unseasoned framing adds inward tension. As damp studs dry inside closed walls, they twist, pulling fasteners and cracking the exterior shell. Homeowners concerned about ongoing structural flexure can partner with a regional exterior specialist like Advantage Plus Construction Group to diagnose underlying lathing flaws before minor cracks escalate into system-wide failure.

The Hidden Danger: Moisture Intrusion and Building Envelope Damage

Plaster behaves like a hard sponge. As a porous reservoir cladding, portland cement absorbs rainwater, holding moisture until dry air wicks it out. When unsealed fissures break the facade, that absorption changes to bulk intrusion. Water bypasses the exterior plane entirely, funneling behind the outer coat. Addressing stucco cracking causes and prevention is fundamentally about safeguarding your home against concealed moisture decay.

How Surface Fractures Compromise Your Weather Barrier

Capillary action draws moisture inward through microscopic cracks. During sustained rainfall, liquid migrates along lath fasteners and reaches the weather-resistive barrier behind the plaster matrix. If poor installation pinched, punctured, or improperly lapped that underlying membrane, water leaks through.

Trapped moisture needs an exit path. That drainage depends entirely on the weep screed installed at your foundation line. When garden mulch, flat patio slabs, or paint block these lower weep holes, water pools within the wall assembly. Consulting an exterior envelope contractor Sacramento guide helps homeowners spot these drainage choke points before moisture breaches structural interiors.

Dry Rot, Microbial Growth, and Structural Sheathing Degradation

Dark wall cavities hold moisture, creating ideal conditions for fungal rot. Once wet framing remains saturated without drying airflow, structural issues develop quickly:

• Sheathing delamination: Oriented strand board panels swell and soften, losing fastener grip.
• Framing deterioration: Fungi feast on the cellulose within 2x4 and 2x6 timber studs, quietly compromising their load-bearing capacity.
• Microbial growth: Spores colonize wall cavities, traveling through interior baseboards to trigger musty smells and degrade indoor air quality.

Visible interior drywall stains or damp baseboards point to long-standing envelope failures. Reviewing our signs you need new siding checklist can help evaluate whether localized surface repairs remain viable or if widespread water rot demands comprehensive exterior envelope rehabilitation.

Proven Stucco Crack Prevention: Architectural Standards That Endure

Preventing plaster failure requires rigorous engineering rather than cosmetic afterthought. True structural defense is built into the wall assembly long before the finish trowel arrives. When establishing a reliable strategy for stucco cracking causes and prevention, your building envelope must incorporate specific mechanical controls, precise fastening schedules, and controlled hydration protocols.

Every long-term plaster defense relies on five non-negotiable construction pillars:

• Segmented control joints: Breaking broad spans into independent panels that relieve thermal movement.
• Heavy-gauge self-furring lath: Anchoring diamond wire mesh with corrosion-resistant screws driven deep into solid studs.
• Moist-curing disciplines: Supplying continuous water across scratch and brown coats to achieve maximum compressive strength.
• Integrated weep screeds: Creating dedicated gravity exit paths at base foundations to drain intercepted water.
• Vapor-permeable finishes: Applying flexible acrylic topcoats that bridge minor hairline movement while allowing internal water vapor to escape.

Control Joints and Stress-Relief Engineering

Large, unbroken plaster planes inevitably tear under stress. Standard building practices mandate zinc or galvanized control joints every 144 square feet, restricting single panel lengths to eighteen feet. These joints give the rigid matrix room to expand during heat spikes.

Framing shifts demand dedicated relief. Two-piece slip joints must isolate floor-line transitions between stories, where framing settling exerts intense vertical pressure. Around fenestrations, casing beads paired with closed-cell backer rods isolate window frames, keeping structural vibrations from shattering adjacent corners.

Rigorous Curing Protocols and Modern Flexible Finishes

Chemical hydration cannot be rushed. Rushing coats onto dry plaster produces brittle walls prone to spalling. Dedicated project managers enforce forty-eight-hour continuous mist-curing protocols for both base layers. This disciplined watering slows evaporation, allowing portland cement crystals to interlock fully.

Finishes must balance protection with breathability. Selecting an acrylic-polymer-modified finish provides elastic bridging over tiny curing movements. Avoid non-breathable exterior paints. Impermeable rubberized barriers trap escaping house vapors inside the wall cavity, blistering the paint and softening the plaster core. If your home's exterior shows persistent joint failures or cracking, schedule an exterior envelope assessment with our team to safeguard your assembly against ongoing structural deterioration.

Remediating Failed Stucco: Professional Repair vs. Complete Replacement

Surface remedies offer temporary relief. When active fractures rupture an exterior wall, squeezing elastomeric caulking into the gap merely hides the symptoms while structural movement continues unchecked beneath. A disciplined approach to stucco cracking causes and prevention requires confronting a clear operational choice: executing a surgical plaster restabilization or investing in an engineered envelope replacement.

The Limitations of Caulk and Patch Solutions

DIY caulking compounds cause distinct architectural drawbacks. Flexible sealants cure with a smooth texture that sharply contrasts with surrounding aggregate, leaving noticeable witness lines across the wall. When fresh paint dries over these patches, sheen discrepancies highlight the original defect rather than concealing it.

Rigid hydraulic cements fail for mechanical reasons. Because seasonal soil movement and framing flexure never stop, inflexible patching mortars cannot absorb ongoing tension. They shear along the repair perimeter within months. When an exterior wall exhibits intersecting fractures across more than twenty percent of its surface, the plaster has lost its bond with the lath. Surface treatments cannot restore that detached assembly.

Long-Term Protection: Modern Stucco Systems vs. Fiber Cement Upgrades

True plaster remediation requires surgical intervention. Technicians cut away compromised sections past the damaged boundary, inspect the underlying weather-resistive barrier, lace fresh wire lath into the existing reinforcement, and apply three consecutive, properly cured coats. Homeowners seeking guidance on comprehensive plaster restoration can consult our stucco contractors Sacramento CA overview for complete system assemblies.

Extensive sheathing rot shifts the equation toward cladding replacement. If decades of bulk moisture intrusion have decayed perimeter studs and wall panels, removing the failed plaster entirely provides access to remediate framing rot and restore the structural envelope. Homeowners facing total replacement frequently evaluate switching from traditional masonry to advanced composite claddings. Reviewing our cost of stucco vs. fiber cement siding analysis helps determine whether re-plastering or installing impact-resistant siding best delivers permanent defense for your property investment.

Protect Your Home With Proven Building Envelope Defense

Preserving your home's structural integrity requires looking past superficial fixes. Understanding stucco cracking causes and prevention means respecting how dynamic loads, soil movement, and regional climate patterns stress exterior assemblies. When you address seasonal shifting, install engineered control joints, and maintain clear drainage planes, you stop water from quietly rotting your timber framing.

Advantage Plus Construction Group delivers specialized exterior envelope installation expertise across Sacramento, Roseville, and Granite Bay. Through disciplined project management, our specialists enforce rigorous moisture barrier detailing, secure structural lath assemblies, and strict curing protocols. Don't let progressive fractures compromise your investment. Schedule an exterior envelope evaluation with Advantage Plus Construction Group to secure the durable protection and lasting peace of mind your home deserves.

Frequently Asked Questions

Is it normal for a new stucco home to have hairline cracks?

Yes, minor hairline cracks often appear during the normal hydration and curing process. As portland cement loses water, microscopic shrinkage naturally occurs across the curing matrix. These tiny hairline fissures are typical cosmetic adjustments, provided they measure under one-sixteenth of an inch and remain flat against the wall plane.

How wide does a stucco crack have to be before it causes water damage?

A crack that reaches or exceeds one-sixteenth of an inch creates a direct pathway for bulk moisture intrusion. At this dimension, surface tension breaks and wind-driven rain penetrates past the plaster shell. Addressing stucco cracking causes and prevention before fissures widen to this threshold is critical to avoiding moisture accumulation behind the wall assembly.

Can I use regular silicone caulk to seal cracks in exterior stucco?

No, standard silicone caulk should never be used on exterior plaster. Silicone creates a smooth, glossy line that repels paint, highlights defects, and lacks the breathability necessary for cement assemblies. Instead, professional repairs require textured, paintable polyurethane or high-grade acrylic sealants formulated specifically to flex with masonry movement while releasing vapor.

What is the difference between a control joint and an expansion joint?

A control joint relieves internal drying shrinkage within a single plaster panel, whereas an expansion joint accommodates external structural movement between distinct wall assemblies. Control joints are one-piece components placed within broad wall fields. Expansion joints are two-piece assemblies engineered to absorb heavy framing shifts, floor-line settling, and dissimilar substrate junctions.

Does homeowner insurance cover repairs for stucco cracking and moisture intrusion?

Most homeowner insurance policies exclude coverage for gradual stucco cracking, soil movement, and long-term water intrusion. Insurers typically classify moisture degradation, framing rot, and curing fissures as routine maintenance issues or installation defects. Coverage usually applies only when cracking results directly from sudden, covered perils like vehicle impact or fallen trees.

How long should stucco cure between the base coats and the finish coat?

Traditional three-coat plaster requires forty-eight hours of continuous moist curing for both the scratch and brown base coats, followed by a mandatory drying interval. Building codes typically mandate seven days of total curing time before applying the brown coat, and up to twenty-eight days before the final finish coat to ensure complete hydration.

When should I choose complete siding replacement over repairing cracked stucco?

You should consider complete replacement when cracking impacts more than twenty percent of your facade or when underlying framing rot has compromised structural sheathing. If repeating crack networks across communities like Roseville, Rocklin, or Loomis indicate shifting subgrades and failed lath, switching to fiber cement siding provides an engineered, moisture-impervious defense that eliminates ongoing masonry cracking entirely.
